6 Zone SMT Reflow Soldering Oven for PCB Production

Name: 6 Zone SMT Reflow Soldering Oven for PCB Production
Brand: Honreal
Price: 9000 USD

Buy cheap 6 Zone SMT Reflow Soldering Oven for PCB Production product

Max PCB width : 400mm

Price : USD 9000-11000 Per Set

Supply Ability : 100 Sets Per Month

Delivery Time : 20 Days

Heating tunnel : 1938mm

Brand Name : Honreal

Model Number : HR-E640

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Packaging Details : Export wooden box packaging

Controlling type : Touch screen and PLC

Temperature accurancy : ±1 ℃

Dimension : L3571*W1200*H1450

Rising time : 15 mins

Mesh belt width : 450mm

Heating zones : 6 zones

Contact Now

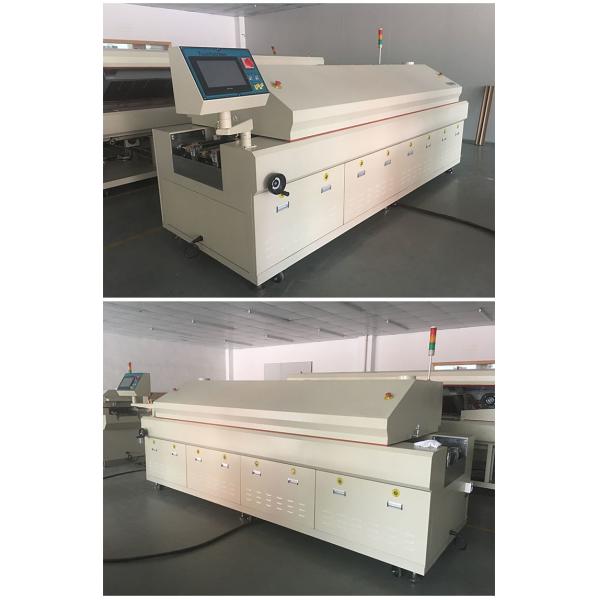

6 Zones SMT Reflow Soldering Machine Oven Lead Free For PCB Production Line

Key Specifications

Attribute	Value
Heating zones	6 zones
Heating tunnel	1938mm
Dimension	L3571 * W1200 * H1450
Rising time	15 mins
Controlling type	Touch screen and PLC
Temperature accuracy	±1℃
Max PCB width	400mm
Mesh belt width	450mm

Product Overview

This 6-zone SMT lead-free reflow soldering oven features advanced PLC+PID closed-loop control for precise temperature management and repeatable profiles. Designed for PCB production lines, it combines efficiency with reliability.

Key Features

Streamlined design with high-precision temperature control (±1℃ accuracy)
Stores 50 temperature parameter groups with 2 additional profile testing ports
Premium components including Schneider breakers and Omron relays
Specially designed CE-certified blower for lead-free operation
Easy-access design for cleaning and maintenance
Stainless steel inner tunnel resistant to high temperatures
Forced hot air convection in all zones
Hardened rail stainless steel mesh belt with SMEMA compatibility
Modular design reduces maintenance time and costs

Technical Parameters

Parameter	Specification
Model	HRM-640
Heating zones	Upper 6 zones, Bottom 6 zones
Net weight	≈1100Kg
Power consumption	≈8-8KW
Temperature range	Ambient to 350℃
Temperature uniformity	±2℃
Cooling system	1 cooling zone with air cooler
Conveyor speed	0-1000mm/min
Power supply	380V, 3PH, 50Hz

Control System Features

6 Zone SMT Reflow Soldering Oven for PCB Production

Full English interface with intuitive operation
Stores 50+ parameter groups with pre-set leaded/lead-free profiles

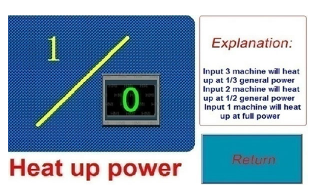

Unique program design reduces startup power consumption
Color touchscreen with PLC controller for stable operation

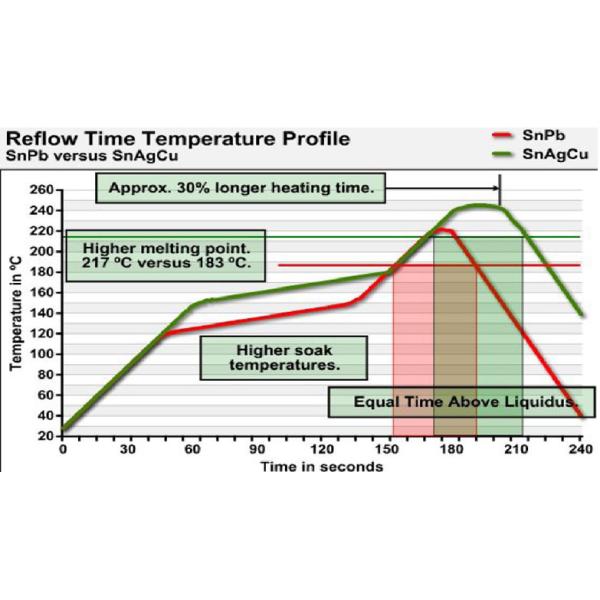

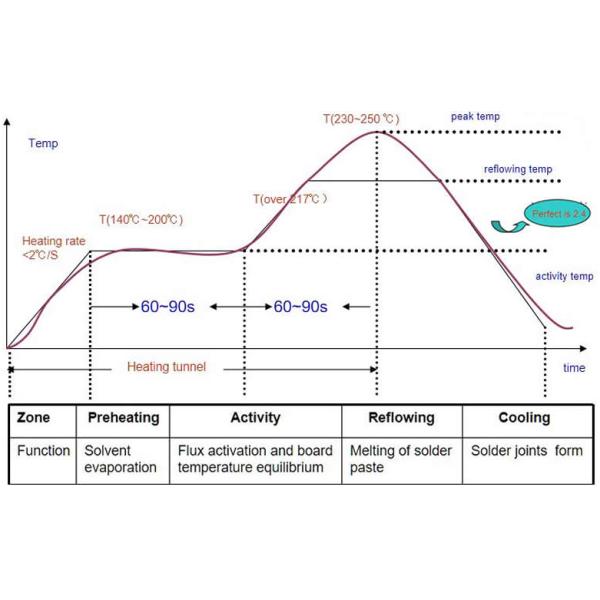

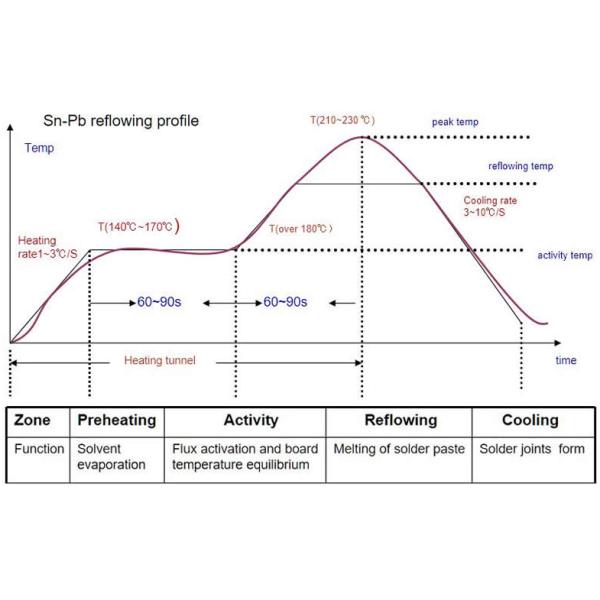

Temperature Standards

Calibrated to meet IPC standards for both leaded and lead-free soldering
Peak temperature exceeds solder paste melting point by 20-30℃
Pre-configured optimal temperature settings provided before shipment

Electrical Components

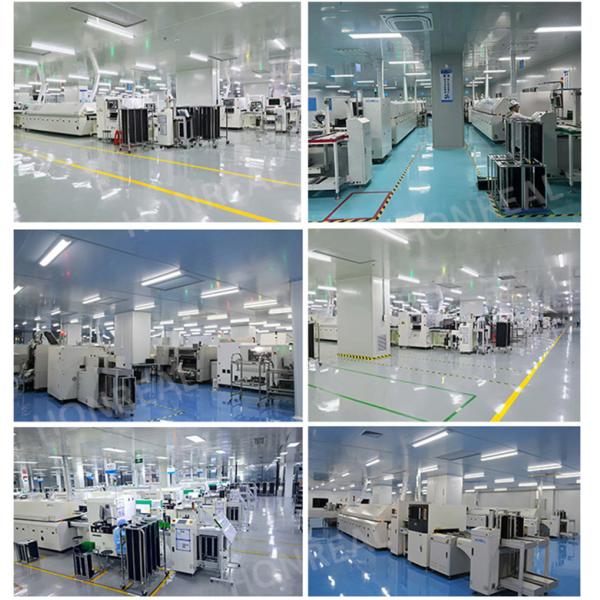

Packaging & Clients
